Standard Tee with 10 in. Snout and Tee Cap

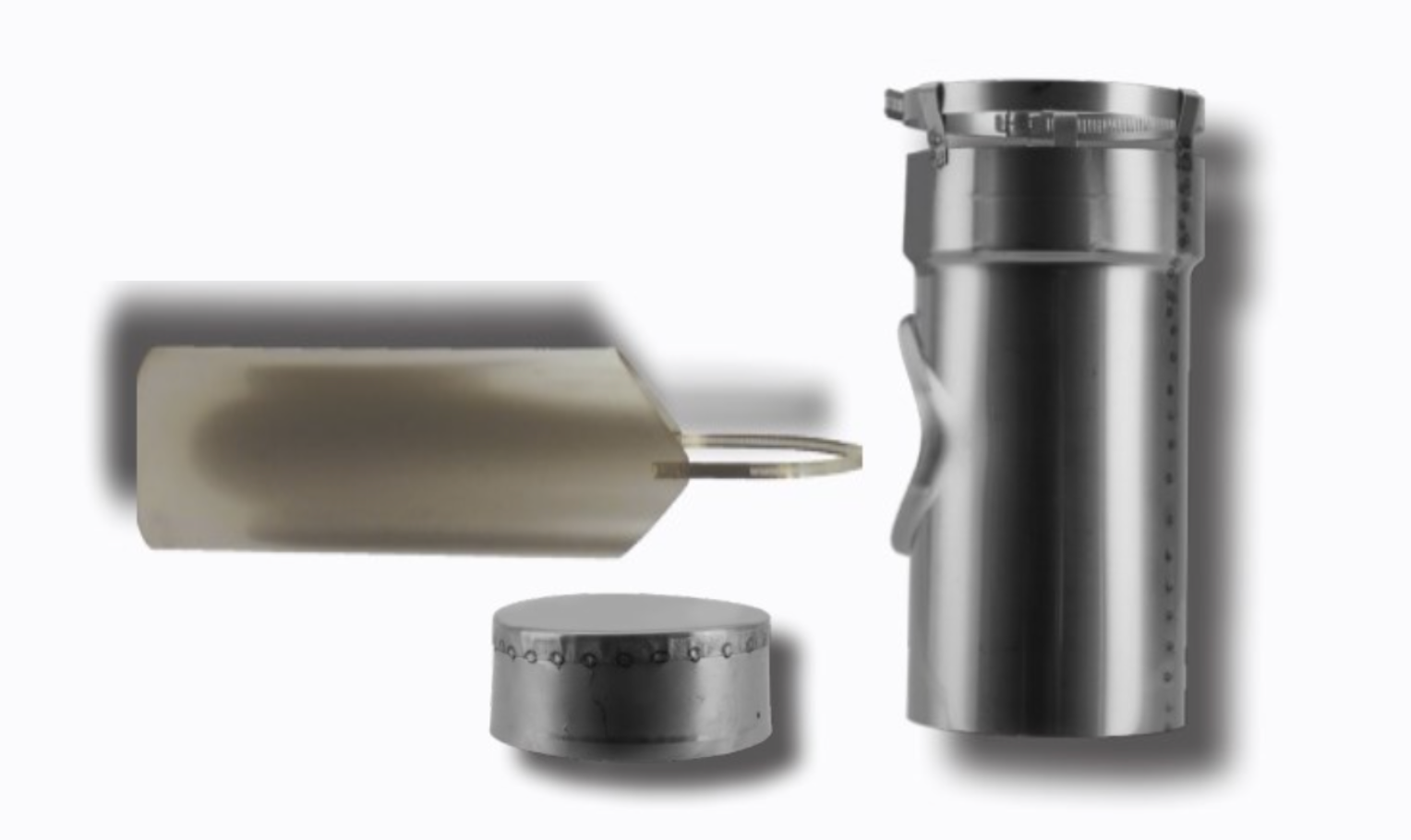

The Tee Connector features a tee cap, a removable 10" long snout, a secure inside removable clamp connection and the quick connect band. Tee Connections are used to connect our flexible liner to the back of an appliance such as a stove or most commonly used to pass through a chimney thimble. The vertical part of the tee (the tee body) will connect to the flexible chimney liner. The horizontal part of the tee (the snout) will connect to the back of the appliance or pass through the thimble. The unique quick-connect clamp design allows the two parts of the tee to easily attach with a tight and secure seal. The quick-connect clamp screw is located inside the tee snout for easy access during installation. A clean out cap is always included! The removable clean out tee cap allows for easy access for cleanings.
The tee connection adds 1/2" to the diameter size of the flexible liner (Ex: A 6" diameter tee connection has an outside diameter around 6.5"). If you need the snout to be less than 10" simply cut it down with a hack saw. See Flex Tee Connector dimensions.
Note: The Tee Snout is a female end and depending on your application you will need to have it crimped or add a Flex Liner Snout Adapter (only for 5.5" to 8" diameters).
Available in various sizes to fit your chimney liner.
